10A SAE MOTOR Double Open End Wrenches

US$7.19 *

Prices plus shipping costs

Ships in 2-5 business days.
Delivery in 4-25 business days.

Size:

  • SW020008-001
  • 4018754019724
  • 0.021 Kg

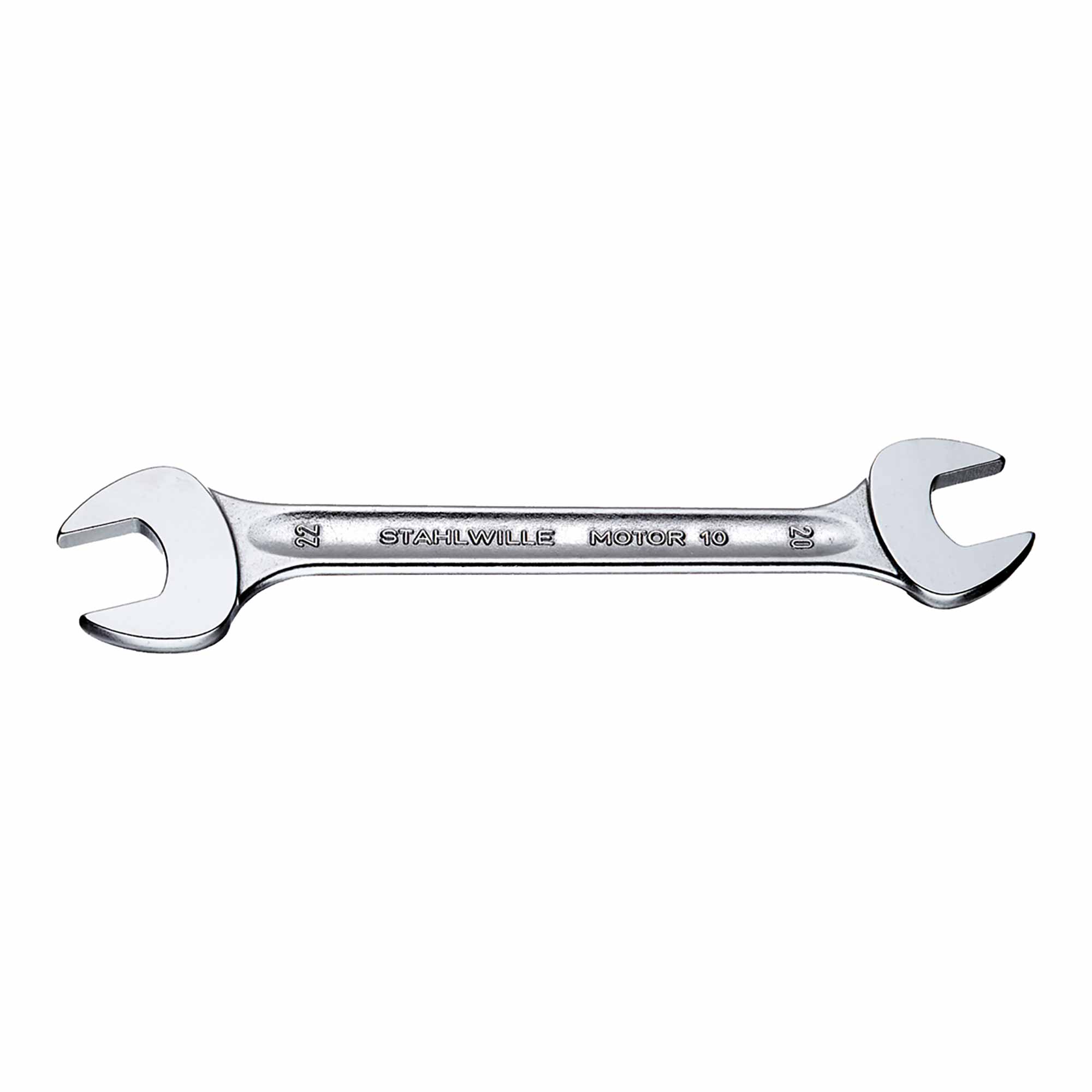

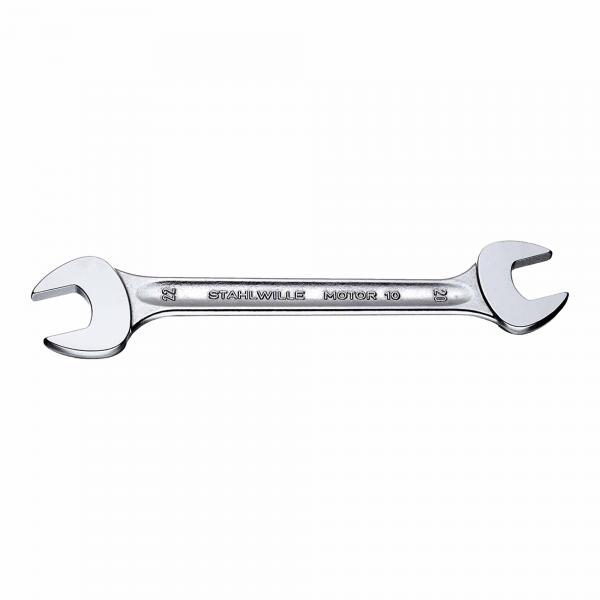

The classic double open end wrench in SAE sizes. Made from strong Chrome-Alloy-Steel hard... more

The classic double open end wrench in SAE sizes.

Made from strong Chrome-Alloy-Steel

hard chrome surface protection

conforms to DIN 3110, ISO 10102

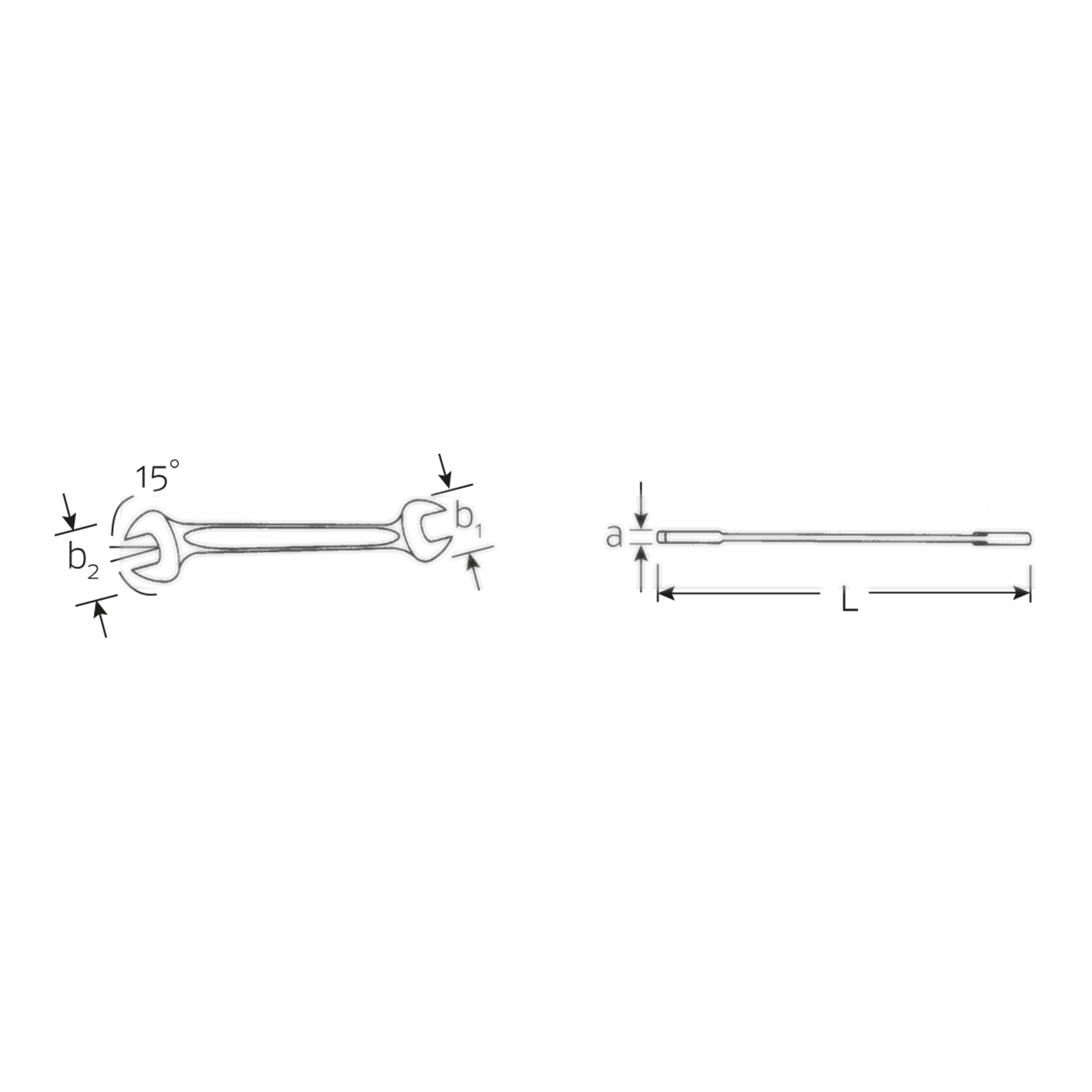

Dimension Stahlwille # a (mm) b1 (mm) b2 (mm) Length (mm) Weight (gr)
1/4 x 5/16 40431620 4 16 18 140 21
5/16 x 3/8 40432024 4,5 18 23 140 34
3/8 x 7/16 40432428 4,8 23 26 155 48
7/16 x 1/2 40432832 5,3 26 30 170 58
1/2 x 9/16 40433234 5,3 30 32 190 73
9/16 x 5/8 40433436 5,8 32 36 205 96
19/32 x 11/16 40433538 5,8 35 40 205 105
5/8 x 11/16 40433638 5,8 36 40 205 101
5/8 x 3/4 40433640 6,7 36 42 220 135
11/16 x 3/4 40433840 6,7 40 42 220 135
11/16 x 13/16 40433842 7,3 440 47 235 167
3/4 x 7/8 40434044 7,3 42 49 235 177
25/32 x 13/16 40434142 7,3 45 47 235 190
7/8 x 15/16 40434446 7,8 49 53 250 235
15/16 x 1 40434648 8,3 53 55 270 303
1.1/8 x 1.5/16 40435258 9,4 64 75 300 502
