Stahlwille CORONA 23 Series Shallow Offset Double Ended Ring Wrenches

Preview: 23 CORONA Double Ended Ring Wrenches

US$13.08 *

Prices plus shipping costs

Ready to go! In your hands soon.
(see shipping costs for details)

Order number: SW020016-001
GTIN-13 (EAN) 4018754021659
Suppliernumber: 41070607
Weight: 0.041 Kg
Customs tariff number: 82041100
Country of origin (COO): Germany

metric size shallow offset Box-end head 10° offset AS-drive Anti Slip Surface: chrome-plated... more

Close menu

metric size
shallow offset
Box-end head 10° offset
AS-drive Anti Slip
Surface: chrome-plated
Material: Chrome-Alloy-Steel
DIN 897/ISO 10104 (metric size)
Made in Germany

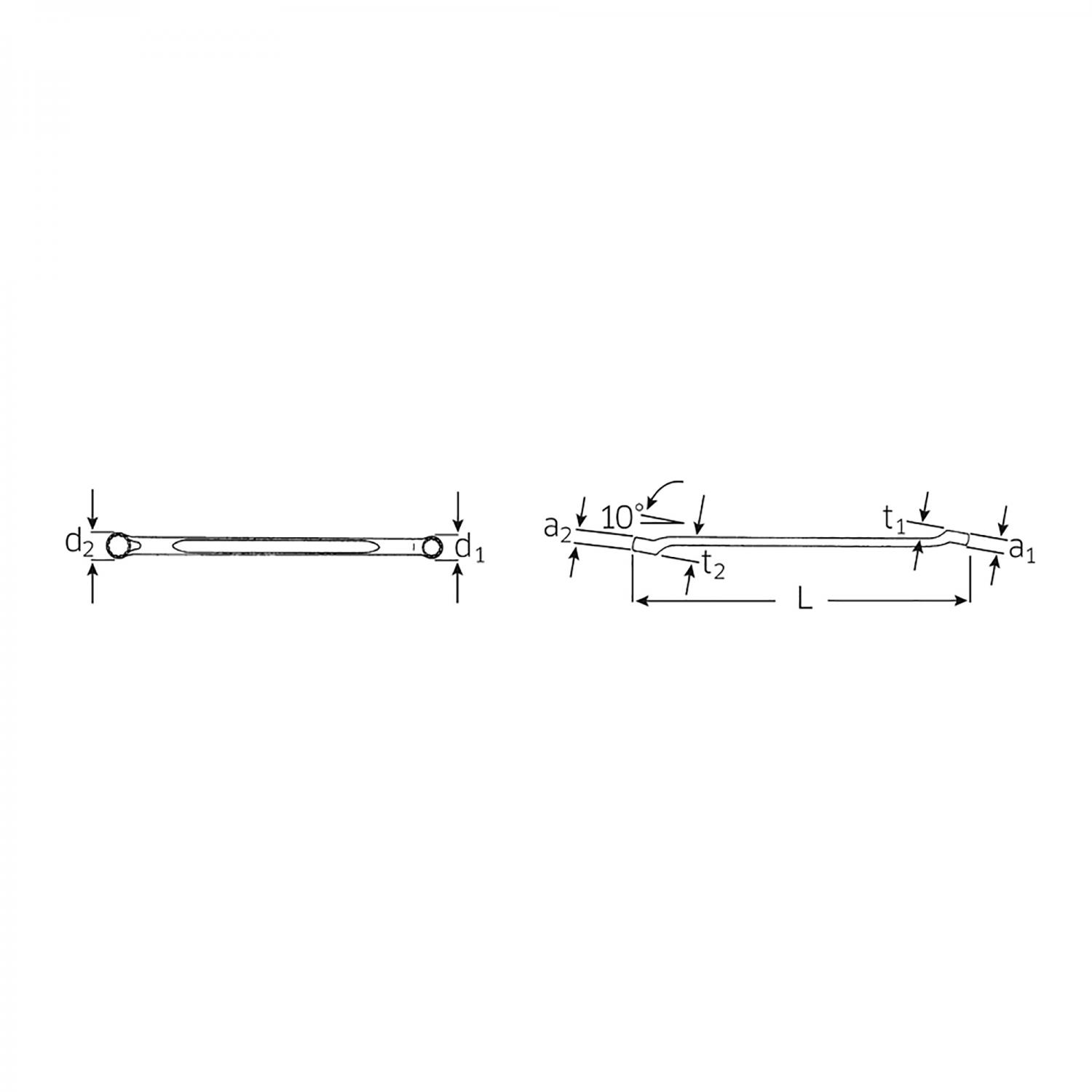

Stahlwille #	Size	Weight (g)	L (mm)	d1 (mm)	d2 (mm)	a1 (mm)	a2 (mm)	t1 (mm)	t2 (mm)
41070607	6 x 7 mm	41	170	9,5	10,8	6	7	7	8
41070809	8 x 9 mm	49	179	12,1	13,3	7	8	8	9
41071011	10 x 11 mm	66	188	14,6	15,9	8,5	9,5	9	10
41071213	12 x 13 mm	78	203	17,3	18,6	9,5	10,5	10	11
41071415	14 x 15 mm	109	219	20,1	21,4	10,5	11,5	11	13
41071617	16 x 17 mm	144	248	22,7	24,1	11,5	12,5	14	15
41071719	17 x 19 mm	162	250	24,1	27	12,5	13,5	15	18
41071819	18 x 19 mm	157	251	25,5	27	12,5	13,5	16	18
41072022	20 x 22 mm	223	280	28,5	31,3	13,5	14,5	19	20
41072123	21 x 23 mm	281	328	29,8	32,9	13,5	14,5	19	22
41072427	24 x 27 mm	426	376	34,3	38,6	14,5	16	22	24
41073032	30 x 32 mm	608	429	42,6	45,2	18	18	26	27
