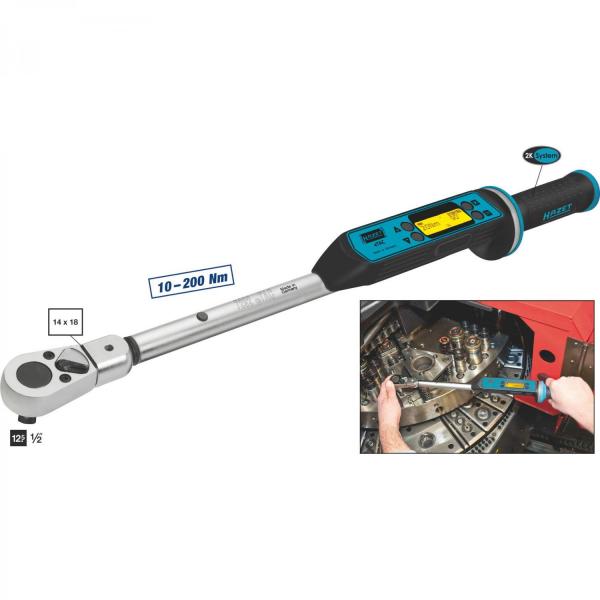

7292-ETAC Electronic torque wrench

If you are looking for one of the most versatile electronic torque wrenches, this is it.

Wide measuring range of 10-200 Nm with a precision of 2%.

Maesures angles too with a precision of 1 degree.

Easy handling due to fast menu navigation (Torque / Rotation angle with only 2 clicks)

• Reduced menu structure due to fix pre-adjustment, e.g. tolerance, Nm-unit
• Testing accuracy ± 2% / ± 1 digit (or ± 1°) in rotation to the right or left
• Relative measurement uncertainty for torque measuring range: ± 2 % /  ± 1 digit
• Torque tolerance range: ± 8 %
• Measuring range for rotation angle (adding): 5° to 995°
• Relative measurement uncertainty for rotation angle measuring range: ± 2 % / ± 1°
• Rotation angle tolerance range: 5° to 15° ± 1°
  20° to 25° ± 2°
  30° to 35° ± 3°
  from 90° ± 10°
• Offers possibility to select or program the effective length for other insert tools (requirement for correct torque / angle rotation measurements)
• Protection rating: IP 40
• Release accuracy tolerance according to ISO 6789
  DIN EN ISO 6789 - NF EN ISO 6789
• High-precision torque wrench with built-in angle gauge
• Three signals alert the user during screwing process: audible signal (buzzer), vibration signal and a 360° LED display with "traffic light function" that is visible from all around

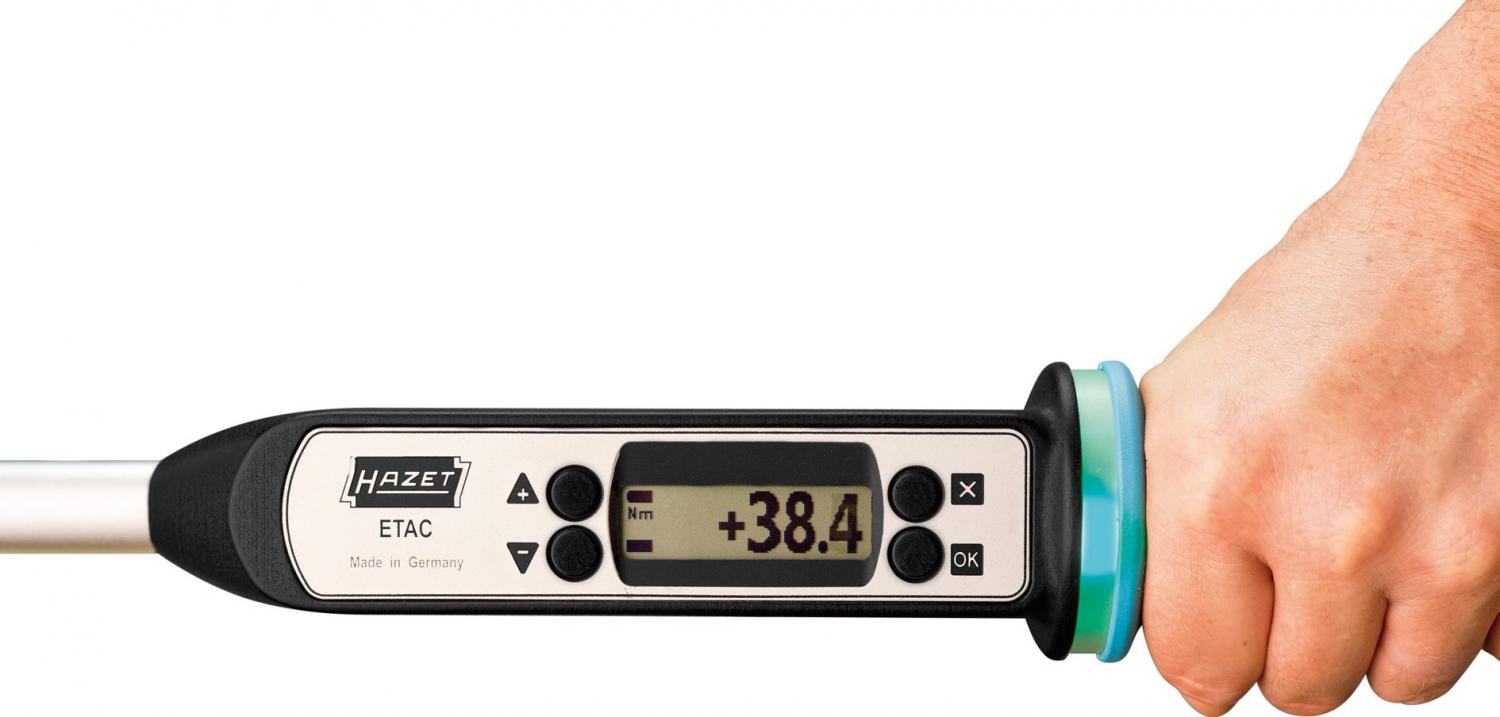

• Big and easily readable display, 180° rotatable
• Indication of the measuring values including a rating of the screwing process (o.k. / not o.k)
• Safety switch-on and switch-off (2 different buttons) and automatic, time-dependent, energy-saving stand-by mode
• Battery display
• 4 standard batteries (AA-1.5 V) ensure long service life
• Torque unit: Nm
• Torque display range (Nm): 5 to 200
• Torque measuring range (Nm): 10 to 200
• Length with/without insert tool (mm): 580 / 518
• Weight with / without insert tool (kg): 1.25 / 0.98
• Release accuracy tolerance according to ISO 6789 - DIN EN ISO 6789 - NF EN ISO 6789

Made in Germany

Total length (for eClass): 518580 mm
(Blade) length l1: 518 mm
Output: Insert square 14 x 18 mm, Square, solid 12.5 mm (1/2 inch)
Net weight: 1.24 kg

• Easy, clearly structured menu navigation with icons
• Ergonomic tool design, especially geared to the user and suitable for professional use
• 2-component handle made of impact resistant fibre-glass reinforced plastic with soft handle elements
• Includes detailed operating instructions and certificates in the HEXA plastic box,
  also includes insert reversible ratchet 6404-1
