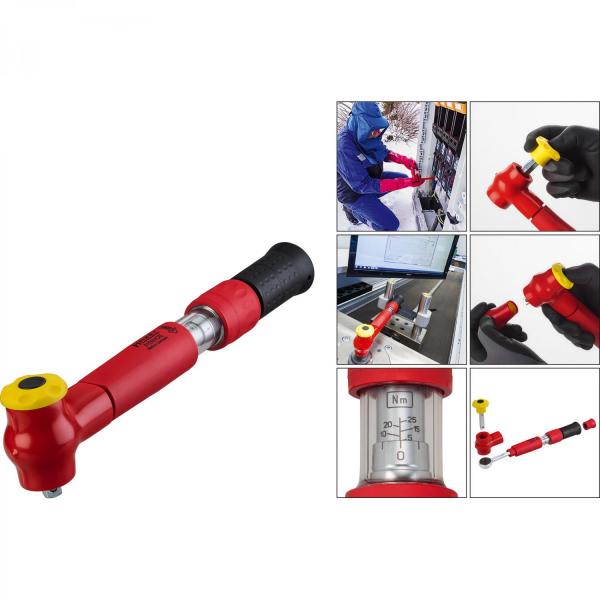

HAZET 5109VDE VDE Torque Wrench, 5 - 25 Nm

• Can be readjusted and recalibrated
• Possible repairs to the VDE torque wrenches in the HAZET Service Centre
• Long life/accuracy through the option of:

- Disassembly
- Adjustment
- Repair (if necessary)
- Calibration
- Assembly

• Suitable for control of inspection and test equipment
• Sustainable and environmentally sound
• Fine scale graduation with vernier scale
• Locking against unintentional adjustment of the setting value
• Safe torque release:

- palpable (close gap release)
- audible (“click” sound)

• Right/left release by square box wrench, thereby tightening at torque setting both to the right and to the left within the specified tolerance
• VDE-tested
• Using sockets from other manufacturers is possible provided they conform to the standard IEC 60900:2012 or DIN EN 60900
• Low weight for good handling and fatigue-free work

Product design features

• Slim design in strict accordance with the required insulating properties (material strength/overlaps)
• Smooth transitions on switching and moving parts with ergonomic handle design and calibration notch
• Consistent appearance even when using other components (e.g. red insulated sockets)
• Attractive colour design of the housing and head with established VDE signal colours red/yellow
• Handle colour in black to make a distinction with the colour and to prevent it appearing dirty quickly
• No disturbing projecting parts (e.g. shift lever)
• DIN EN ISO 6789:2003 (D), Square according to DIN 3120, EN/IEC 60900:2004
• Made in Germany
• Total length: 305 mm
• Output: Square, solid 10 mm (3/8 inch)

ATTENTION:
Repairs may only be carried out by the HAZET Service Center, as repair works must be followed by a 10,000 V routine test in accordance with IEC 60900
5109VDE
