Hazet 606 ratcheting combination wrenches

Hazet 606 ratcheting combination wrenches
US$20.00 *

Prices plus shipping costs

Ships in 2-5 business days.
Delivery in 4-25 business days.

606-sizes:

  • 4000896100941
  • 0.031 Kg
For the operation of screw connections in areas with restricted access, ratchet function... more

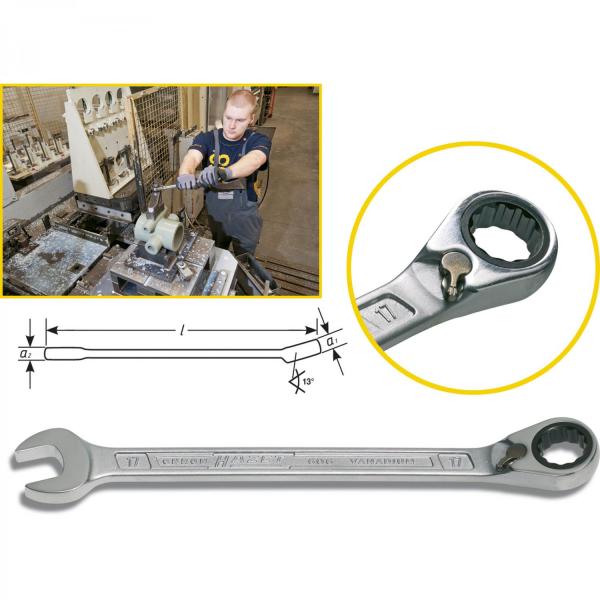

  • For the operation of screw connections in areas with restricted access, ratchet function enables continuous working
  • Box-end side with reversible ratchet
  • Fine tooth, 72 teeth, rotation angle 5° (sizes 8 and 9mm: 60 teeth, rotation angle 6°)
  • Box-end side 13° offset
  • Surface: chrome-plated
Hazet part # length
l (mm)
head thickness
a1 (mm)
head thickness
a2 (mm)
head width
b1 (mm)
head width
b2 (mm)
weight (kg)
606-8 129.9 6.8 4.9 16.8 16.7 0,031
606-9 143.0 7.2 5.2 18.5 18.8 0,050
606-10 154.5 7.6 5.6 20.1 20.9 0,050
606-11 168.6 8.0 6.0 21.7 23.0 0,062
606-12 180.3 8.5 6.4 22.9 25.9 0,080
606-13 193.2 8.9 6.7 24.9 27.2 0,101
606-14 204.6 9.3 7.1 27.2 29.3 0,113
606-15 218.0 9.7 7.4 28.6 31.3 0,133
606-16 230.2 10.2 7.7 30.1 33.4 0,167
606-17 242.2 10.6 8.1 32.0 35.5 0,185
606-18 255.0 11.0 8.5 32.9 37.6 0,205
606-19 268.3 11.5 9.1 34.1 39.7 0,240
606-21 291.5 13.3 12.0 44.3 48.3 0,355
606-22 291.5 13.3 12.0 44.3 48.3 0,350
606-24 333.1 14.8 12.5 51.2 53.5 0,530
606-27 359.2 15.8 14.7 54.9 60.2 0,610
606-30 402.5 17.3 15.2 60.8 67.0 0,840
606-32 425.8 17.8 15.7 64.2 71.0 0,960

Made in Taiwan to Hazet standards
The reason is that a Taiwanese company owns the patent on the ratcheting mechanism. Therefore practically all ratcheting wrenches are made in Taiwan. We use these wrenches ourselves and can say that the quality is absolutely on par with German products.
