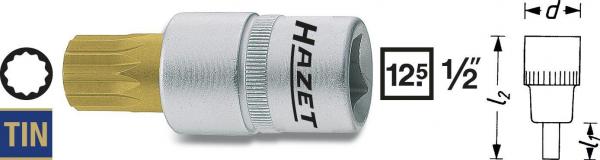

Hazet 990 1/2" drive XZN sockets

HZ020131-001-VH
US$23.16 *

Prices plus shipping costs

Ready to go! In your hands soon.
(see shipping costs for details)

Size:

  • HZ020131-001
  • 4000896047307
  • 990-5
  • 0.063 Kg
  • 82042000
  • Flag of Germany Germany
 ✔ Short design ✔ Easy to turn by hand due to knurling ✔ Surface: TIN coated for high wear... more


✔ Short design
✔ Easy to turn by hand due to knurling
✔ Surface: TIN coated for high wear protection, great corrosion protection
✔ longer life, higher torque, fist perfectly in the screw head

Made in Germany

Drive: 12.5 mm (1/2 inch)
Output: Internal serration profile XZN

The size of the socket is corresponding to the thread size of the screw, so for an M5 screw you need the socket 990-5.

Application of 990-18:

For installing and removing the wheel bearing/hub unit at the rear axle
on AUDI A3 since 2004, VW Touran since 2004, Golf 5 ŠKODA Octavia since 2008

Size
Length l1Length l2Dia. dScrew size
990-553 mm14 mm23 mmM5
990-653 mm14 mm23 mmM6
990-853 mm15 mm23 mmM8
990-1053 mm15 mm23 mmM10
990-1256 mm17 mm23 mmM12
990-1458 mm20 mm23 mmM14
990-1660 mm22 mm23 mmM16
990-1860 mm45 mm23 mm M18
