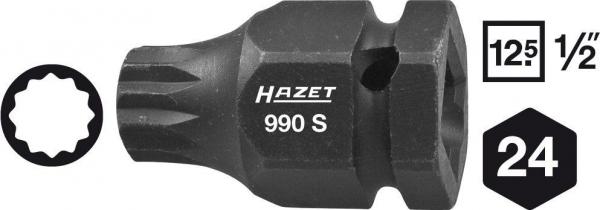

Hazet 990S 1/2" drive XZN impact sockets

HZ020293-001-VH
US$19.92 *

Prices plus shipping costs

Ready to go! In your hands soon.
(see shipping costs for details)

Size:

  • HZ020293-001
  • 4000896160846
  • 990S-14
  • 0.091 Kg
  • 82042000
  • Flag of Germany Germany
 ✔ For screw connections on commercial vehicles and passenger cars with XZN profile e.g. on... more


✔ For screw connections on commercial vehicles and passenger cars with XZN profile
e.g. on chassis, brake system (brake carriers), engines, shock absorbers and camshaft sprocket
✔ Choice of 1/2" drive or 24mm hexagon
✔ Short design
✔ With borehole for locking pin or safety spring and grove for O-ring
✔ Surface: phosphatised, oiled
✔ Made in Germany

Output: Internal serration profile XZN

The size of the socket is corresponding to the thread size of the screw, so for an M14 screw you need the socket 990S-14.

Application of 990S-14:
VW Passat 3C rear brake carrier screw connection and front shock absorber screw connection,
VW T4 lower supporting joint.
Also suitable for holding up the shock absorber in VW Golf 5, 6, Polo 9N, 9N2, AUDI A3 type 8P, TT and SEAT León

Application of 990S-16:
Brake system, camshaft drive wheel and rear brake callipers, e.g. VW Touareg and Phaeton

Application of 990S-18:
Installation and removal of the wheel bearing/hub unit
e.g. VW Touran, model year 2004 →, AUDI A3, model year 2004 →, Golf 5 as well as identical ŠKODA

Size
Total LengthBlade LengthScrew size
990S-1443 mm4 mmM14
990S-1633 mm5 mmM16
990S-1843 mm6 mmM18
