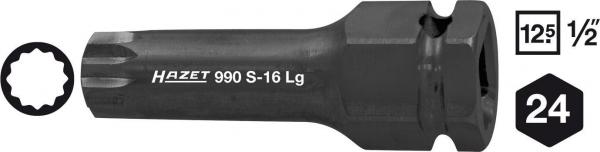

Hazet 990S-LG 1/2" drive XZN impact sockets

Hazet 990S-LG 1/2" drive XZN impact sockets
US$18.31 *

Prices plus shipping costs

Ships in 2-5 business days.
Delivery in 4-25 business days.

Size:

  • 4000896161003
  • 4000896161003
  • 0.125 Kg
✔ For screw connections on commercial vehicles and passenger cars with XZN profile e.g. on... more

✔ For screw connections on commercial vehicles and passenger cars with XZN profile
e.g. on chassis, brake system (brake carriers), engines, shock absorbers and camshaft sprocket
✔ Choice of 1/2" drive or 24mm hexagon
✔ Short design
✔ With borehole for locking pin or safety spring and grove for O-ring
✔ Surface: phosphatised, oiled
✔ Made in Germany

Output: Internal serration profile XZN

The size of the socket is corresponding to the thread size of the screw, so for an M14 screw you need the socket 990S-14LG.

Application of 990S-14LG:
Rear brake carrier screw connection and front shock absorber connection VW Passat 3C
Flywheel MB 541-542-904
For holding up the shock absorber in VW Golf 5, 6, Polo 9N, 9N2, AUDI A3 type 8P, TT, SEAT León

Application of 990S-16LG:
Brake system, camshaft drive wheel and rear brake callipers
e.g. VW T5, model year 2004 → 2.5 TDI engine code: AXD, BNZ, Touareg, model year 2003 → engine code: BAC, BPE and Phaeton,
Atego flywheel.

Application of 990S-18LG:
Chassis and for installation and removal of the wheel bearing/hub unit e.g. VW Touran, model year 2004 →, AUDI A3, model year 2004 , Golf 5 and identical ŠKODA

Size
Total Length Screw size
990S-14LG 75 mm M14
990S-16LG 75 mm M16
990S-18LG 75 mm M18
