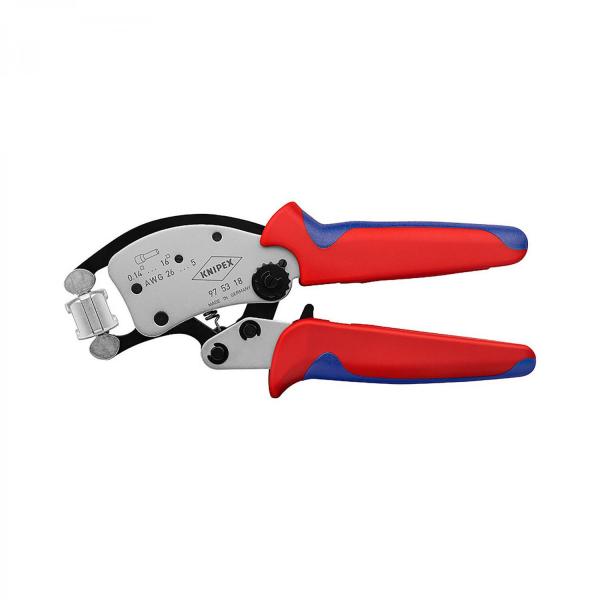

Knipex 975318 Twistor16 Crimping Pliers for End Sleeves (ferrules)

US$216.00 *

Ready to go! In your hands in 1-2 weeks.
(see shipping costs for details)

For crimping end sleeves (ferrules) according to DIN 46228 parts 1 + 4 Square crimp profile,... more

For crimping end sleeves (ferrules) according to DIN 46228 parts 1 + 4
Square crimp profile, high capacity range of 0.14 to 16 mm²
360° rotatable crimping die; with 8 tactile locking positions
Self-adjustment to the desired size of end sleeve (ferrule): no crimping errors due to using the wrong crimping die or to an incorrect setting
Crimping of twin end sleeves (ferrules) up to 2 x 6 mm² possible
Slim head for ideal accessibility
Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
Favourable lever ratio due to toggle lever
Crimping pressure has been set precisely (calibrated) in the factory, re-adjustable
Handy shape and low weight provide high operation comfort
Chrome vanadium electric steel in special quality, oil-hardened

Pliers	chrome plated
Handles	with multi-component grips
Applications	End Sleeves (ferrules)
Capacity in square millimetres	0,14 - 16,0 mm²
AWG	26 - 5
Number of crimping positions	1
Net weight	478 g
Length	200 mm
