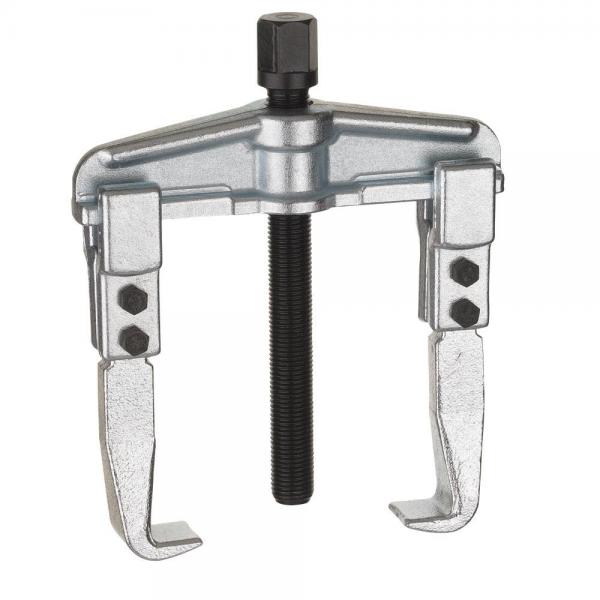

Nexus 100-1 Universal Puller 2-arms

NX010001
US$100.38 *

Prices plus shipping costs

Ready to go! In your hands soon.
(see shipping costs for details)

  • NX010001
  • 4046111000566
  • 100-1
  • 1 Kg
  • 82055980
  • Flag of Germany Germany
 ✓  Universal-Puller, 2-arms ✓  Robust drop-forged design ✓  Strong spindle... more


✓ Universal-Puller, 2-arms
✓ Robust drop-forged design
✓ Strong spindle with fine thread and replaceable ball on top for optimal centering
✓ Reversible puller legs for use as external or internal puller
✓ Expandable with legs in different length, optimized for the necessary clamping depth

Clamping width external pulling (mm)20-90
Clamping width internal pulling (mm)70-130
Clamping depth (mm)100
Max. torque (Nm)80
Spindle dimensions (mm)M14x1,5x130
Max. load (t)4,5
Wrench size (mm)17
Internal width of pulling hook (mm)13
External width of pulling hook (mm)25
Thickness of pulling hook (mm)3
Length of pulling hook (mm)20
