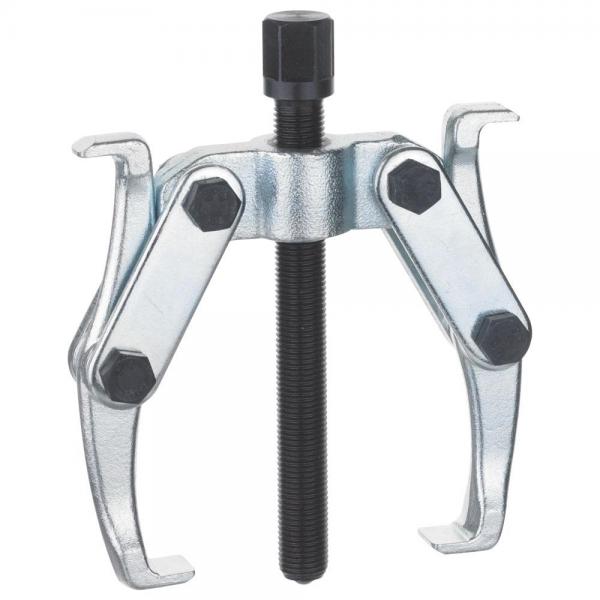

Nexus 131 Strap Puller 2-arm

Nexus 131 Strap Puller 2-arm
US$80.22 *

Prices plus shipping costs

Ready to go! In your hands soon.
(see shipping costs for details)

  • NX010005
  • 4046111004205
  • 131
  • 1 Kg
✓ Strap-Puller, 2-arms Robust drop-forged design ✓ Strong spindle with fine thread and... more

✓ Strap-Puller, 2-arms Robust drop-forged design
✓ Strong spindle with fine thread and replaceable ball on top for optimal centering
✓Double-ended reversible legs with wide or narrow grip
✓ Self-locking strap construction automatically presses the pulling legs under the part to be removed



Clamping width external pulling (mm) 20-150
Clamping width internal pulling (mm) -
Clamping depth (mm) 85
Max. torque (Nm) 50
Spindle dimensions (mm) M14x1.5x130
Max. load (t) 3.5
Wrench size (mm) 17
Internal width of pulling hook (mm) 9
External width of pulling hook (mm) 21
Thickness of pulling hook (mm) 2
Length of pulling hook (mm) 12
