US$137.34 *
Prices plus shipping costs
Ready to go! In your hands soon. (see shipping costs for details)
- Order number: NX010006
- GTIN-13 (EAN) 4046111004250
- Suppliernumber: 132
- Weight: 2.2 Kg
- Customs tariff number: 82055980
- Country of origin (COO):
Germany

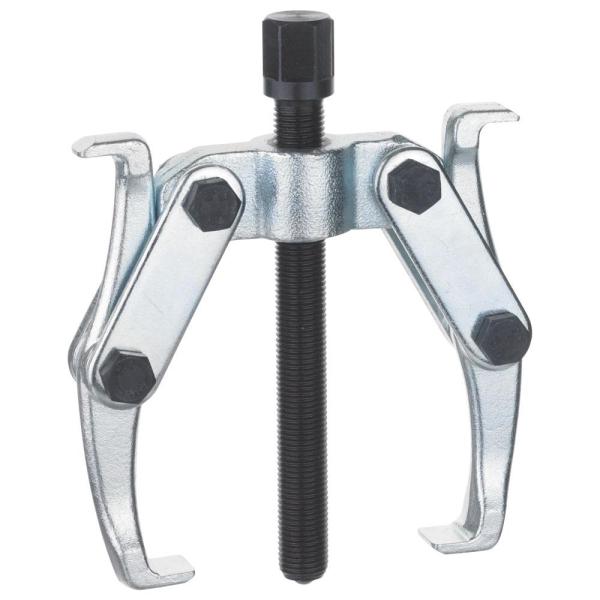

✓ Strap-Puller, 2-arms Robust drop-forged design ✓ Strong spindle with fine thread and... more
✓ Strap-Puller, 2-arms Robust drop-forged design
✓ Strong spindle with fine thread and replaceable ball on top for optimal centering
✓Double-ended reversible legs with wide or narrow grip
✓ Self-locking strap construction automatically presses the pulling legs under the part to be removed
Clamping width external pulling (mm) | ![]() | 40-220 |
Clamping width internal pulling (mm) | ![]() | - |
Clamping depth (mm) | ![]() | 130 |
Max. torque (Nm) | ![]() | 60 |
Spindle dimensions (mm) | ![]() | M18x1.5x240 |
Max. load (t) | ![]() | 4.0 |
Wrench size (mm) | ![]() | 19 |
Internal width of pulling hook (mm) | ![]() | 11 |
External width of pulling hook (mm) | ![]() | 25 |
Thickness of pulling hook (mm) | ![]() | 4 |
Length of pulling hook (mm) | ![]() | 21 |
