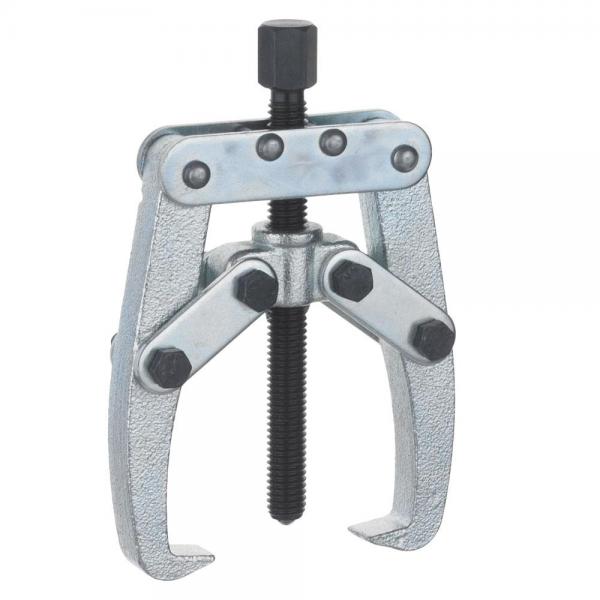

Nexus 140 Mini Puller 2-arm self locking
US$62.46 *
Prices plus shipping costs
Ready to go! In your hands soon. (see shipping costs for details)
- Order number: NX010007
- GTIN-13 (EAN) 4046111004953
- Suppliernumber: 140
- Weight: 0.25 Kg
✓ Mini-Puller, 2-arms Ideal to remove small parts ✓ Suitable to dismount... more
✓ Mini-Puller, 2-arms Ideal to remove small parts
✓ Suitable to dismount windscreen-wiper-arms of vans and trucks
✓Self-locking strap construction automatically presses the pulling legs under the part to be removed
| Clamping width external pulling (mm) |  | 10-50 |
| Clamping width internal pulling (mm) |  | - |
| Clamping depth (mm) |  | 40 |
| Max. torque (Nm) |  | 18 |
| Spindle dimensions (mm) |  | M8x85 |
| Max. load (t) |  | 1.0 |
| Wrench size (mm) |  | 10 |
| Internal width of pulling hook (mm) |  | 6.5 |
| External width of pulling hook (mm) |  | 15 |
| Thickness of pulling hook (mm) |  | 1.5 |
| Length of pulling hook (mm) |  | 8.5 |
