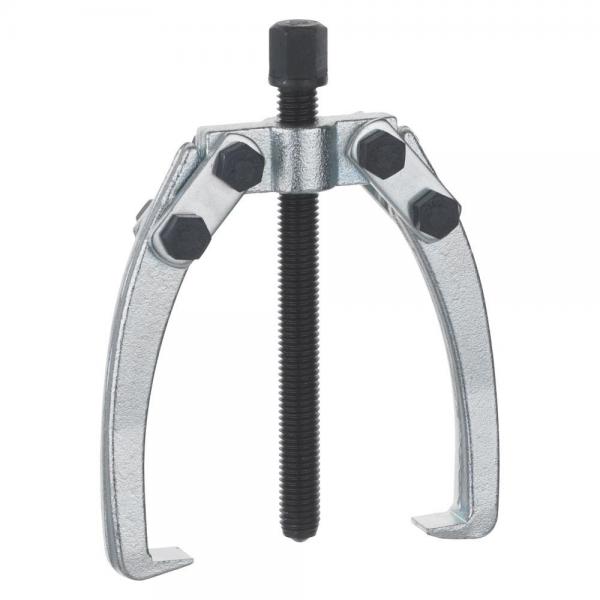

Nexus 141-3 Mini Puller 2-arm
US$44.94 *
Prices plus shipping costs
Ready to go! In your hands soon. (see shipping costs for details)
- Order number: NX010013
- GTIN-13 (EAN) 4046111005394
- Suppliernumber: 141-3
- Weight: 0.35 Kg
✓ Mini-Puller, 2-arms ✓ Ideal to remove small parts ✓ Self-locking strap... more
✓ Mini-Puller, 2-arms
✓ Ideal to remove small parts
✓ Self-locking strap construction automatically presses the pulling legs under the part to be removed
| Clamping width external pulling (mm) |  | 10-90 |
| Clamping width internal pulling (mm) |  | - |
| Clamping depth (mm) |  | 84 |
| Max. torque (Nm) |  | 24 |
| Spindle dimensions (mm) |  | M10x105 |
| Max. load (t) |  | 2,0 |
| Wrench size (mm) |  | 10 |
| Internal width of pulling hook (mm) |  | 10 |
| External width of pulling hook (mm) |  | 20 |
| Thickness of pulling hook (mm) |  | 1,8 |
| Length of pulling hook (mm) |  | 12 |
