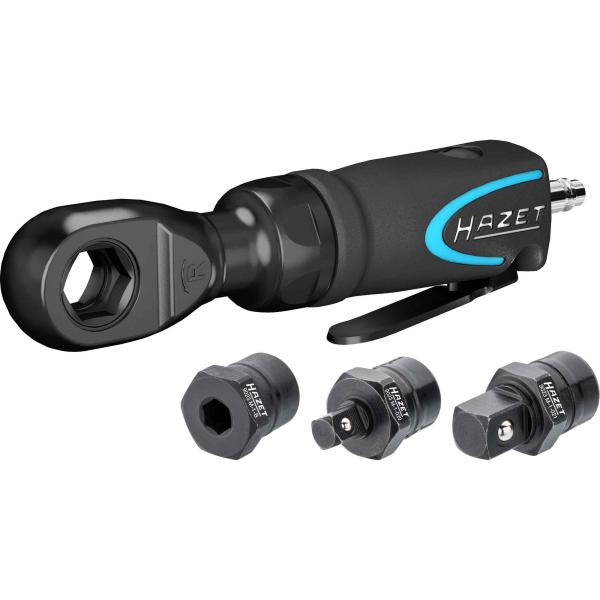

Hazet 9023M-1 Mini multifunctional air ratchet

HZ040147
US$272.04 *

Prices plus shipping costs

Ready to go! In your hands soon.
(see shipping costs for details)

  • HZ040147
  • 4000896227112
  • 9023M-1
  • 0.761 Kg
  • 84671190
  • Flag of Taiwan Taiwan
 Application: With the open 17 mm inside hexagon it is also possible to work on extra... more


Application:
With the open 17 mm inside hexagon it is also possible to work on extra long threads

  • Can be used for 1/4", 3/8" drive tools and 1/4" bits by replacing the ratchet heads
  • Contents:
    Push-through ratchet
    Square socket 6.3 mm (14 inch)
    Square socket 10 mm (38 inch)
    Hexagon bit 6.3 mm (14 inch)
  • Short design
  • Reduced vibrations
  • Exhaust air is guided through the handle
  • For manual retightening with torque values 70 Nm
  • Air connection inlet: Inside thread 12.91 mm (1/4")
  • Coupler plug: Nominal size 7.2 (included)
  • Hose diameter (recommended): 10 mm
  • Working pressure (bar): 6.3
  • Sound power level: 93.8 db(A) Lp W
  • Vibration acceleration: 3.20 m/s2
  • Forward and reverse: single-stage (right/left)
  • Cold insulated handle
  • Total length: 159 mm
  • Output: Square, solid 6.3 mm (1/4 inch), Square, solid 10 mm (3/8 inch), Hexagon, hollow 6.3 (1/4 inch)
  • Net weight: 0.48 kg
  • Tightening torque max.: 54 Nm
  • Sound pressure level: 82.8 dB(A) Lp A
  • Revolutions per minute: 400
  • Air requirement: 84 l/min (1.4 l/sec)

Range of “Mini” pneumatic tools

  • Innovative 5-slat concept for even more power than conventional drives
  • High reliability and continuous operation
  • Extremely small and handy
  • Incl. safety operating lever
  • Number of tools: 4
