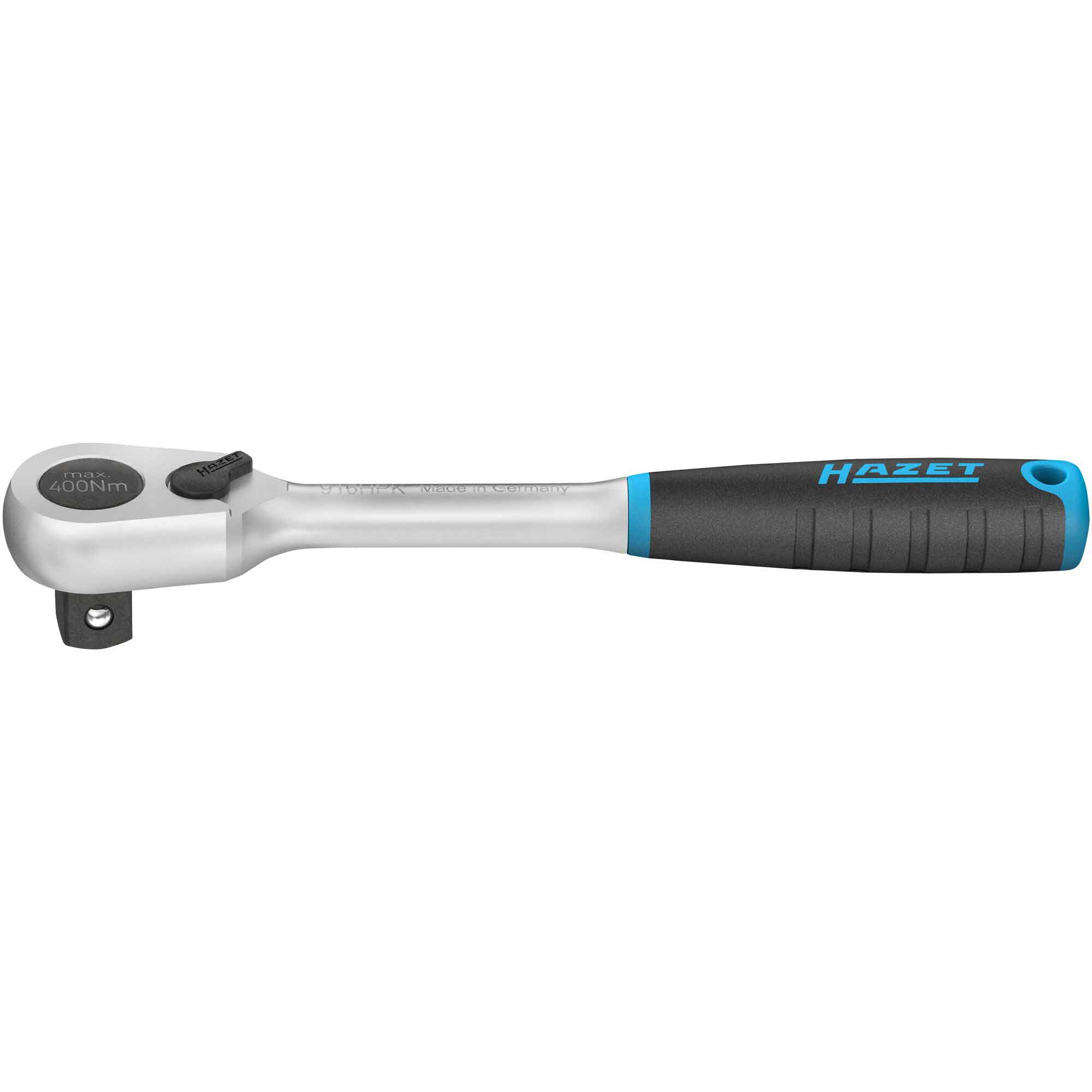

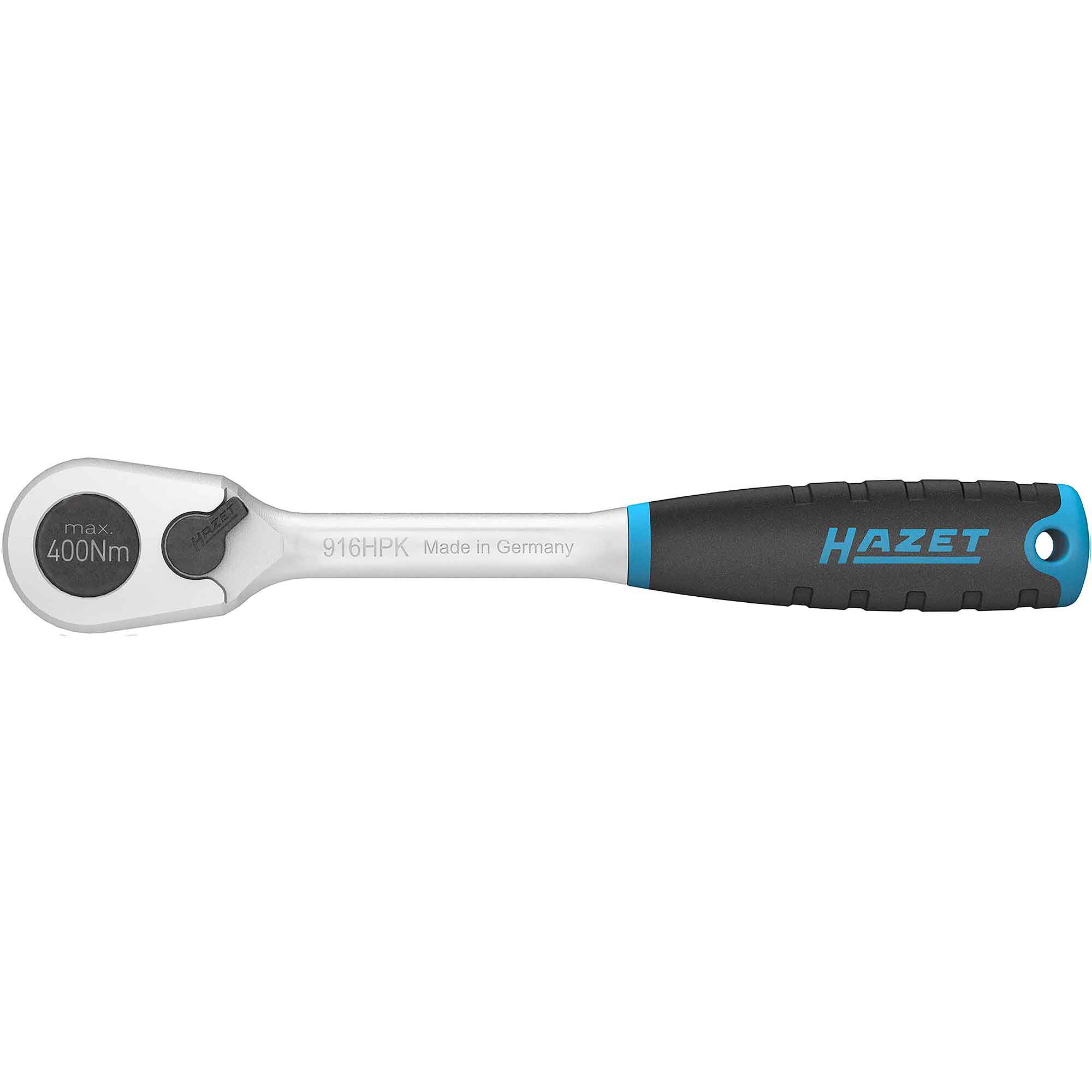

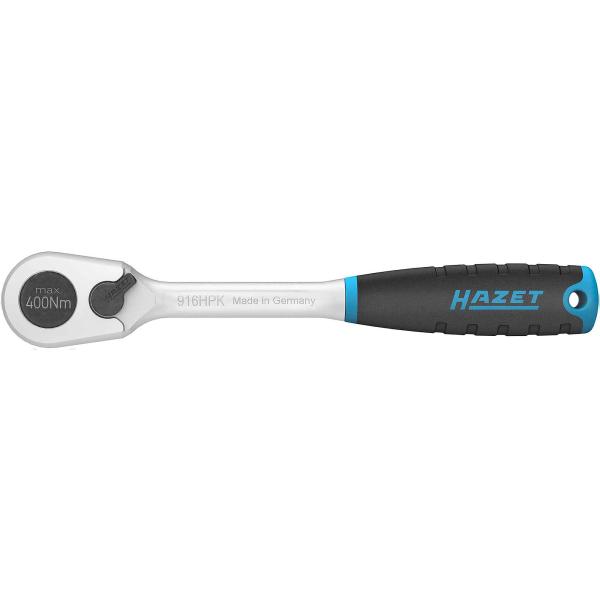

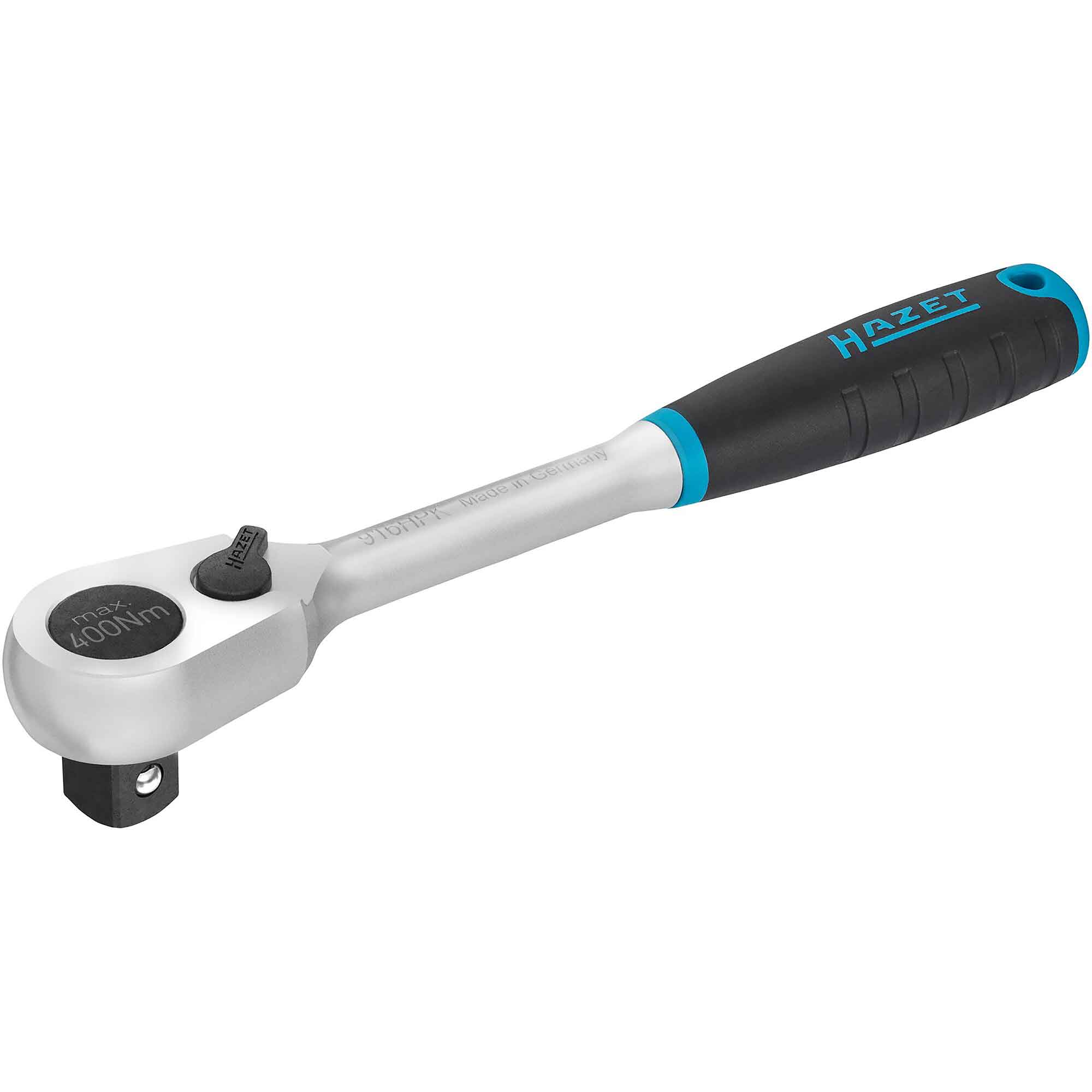

Hazet 916HPK HiPer Short Fine Tooth Reversible Ratchet

US$90.61 *

Prices plus shipping costs

Ready to go! In your hands soon.
(see shipping costs for details)

  • HZ020998
  • 4000896244379
  • 916HPK
  • 0.311 Kg
  • 82041100
  • Flag of Germany Germany
 Application: Small operating angle (4°) enables use in the tightest spaces, e.g. engines,... more


Application:
Small operating angle (4°) enables use in the tightest spaces, e.g. engines, mechanical engineering, agricultural vehicles and machinery, renewable energies (solar, wind turbines)

  • HiPer
  • max. torque 400Nm
  • Locking function of the lever prevents unwanted switch
  • Longer lifetime by using the latest lubricants in the ratchet mechanism
  • Close manufacturing tolerances prevent dirt from getting in
  • HAZET internal quality standards guarantee a loading capacity far beyond standard requirements
  • Design drive / output : With locking ball
  • Handle : HAZET 2-component handle
  • Length : 200 mm
  • Manual / impact operation : For manual operation
  • Net weight : 0.6 kg
  • Number of teeth : 90
  • Opening angle : 4 °
  • Output : square 12,5mm = 1/2″
  • Standard : DIN 3122, ISO 3315
  • Surface : chrome-plated
