US$609.60 *

Prices plus shipping costs

Ready to go! In your hands soon.
(see shipping costs for details)

Order number: HZ030061
GTIN-13 (EAN) 4000896025381
Suppliernumber: 6127-1CT
Weight: 2.09 Kg
Customs tariff number: 82041100
Country of origin (COO): Germany

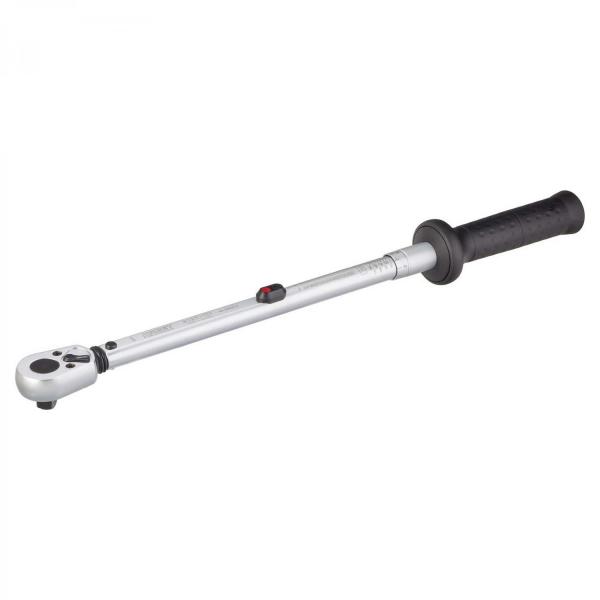

Product information According to US standards Scale graduation in lbf.ft... more

Product information

According to US standards
Scale graduation in lbf.ft
Release accuracy tolerance ± 3% of scale value in direction of actuation
With reversible ratchet
Knob for locking the set value
Secure storage in safe box
DIN EN ISO 6789-2:2017, Square according to DIN 3120, ISO 1174-1
Made in Germany
Total length: 545 mm
Output: Square, solid 12.5 mm (1/2 inch)
Net weight: 1.3 kg

TECHNICAL DATA

Actuating force min.-max. kg : 12.3 – 64.6
Effective torque wrench length max. I1 mm : 427.91 mm
Effective torque wrench length min. I1 mm : 450.47 mm
Head thickness a : 19.6 mm
Head width b : 44 mm
lbf min-max : 40 – 200
Length : 545 mm
Net weight : 1.3 kg
Nm min-max : 54.2 – 271.2
Number of teeth : 32
Opening angle : 11.25 °
Output : i 12,5 = 1/2″
Scale graduation (lbf.ft) : 1 lbf.ft
Signal transmitter : yes
Standard : DIN EN ISO 6789-2:2017, Square according to DIN 3120, ISO 1174-1
Tightening torque max. : 271.2
Tolerance : 3 %
Torque max lbf.ft : 200 lbf.ft
Torque min lbf.ft : 40 lbf.ft
Torque min Nm : 54.2
Total length : 545
