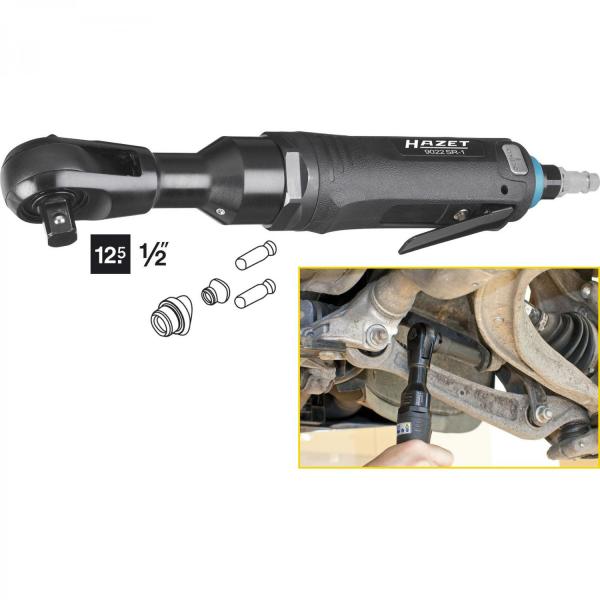

HAZET 9022SR-1 Impact Ratchet



Reaction-free pneumatic impact ratchet for loosening and tightening screw connections in areas with restricted access

• Reaction-free
• High torque values - approx. 30% above standard products
• Speed level - approx. 3 x higher than standard products
• Non-rebound mechanism for low impact work
• Suitable for hand retightening with torque values → 270 Nm (competitive product with approx. 250 Nm only)
• Cold insulated handle
• Powerful pin clutch mechanism
• Air inlet thread: 12,91 mm (1/4″)
• Coupler plug: nominal size 7.2 (included)
• Hose diameter (recommended): 10 mm
• Working pressure (bar): 6.3
• Sound power level: 98 db(A) Lp W
• Vibration acceleration: 4.53 m/s2
• Forward and reverse: single-stage (right/left)

Total length (for eClass): 280 mm
Output: Square, solid 12.5 mm (1/2 inch)
Net weight: 1.99 kg
Tightening torque max: 102
Sound pressure level: 91 dB(A) Lp A
Revolutions per minute: 400
Air requirement: 113 l/min (1.9 l/sec)
