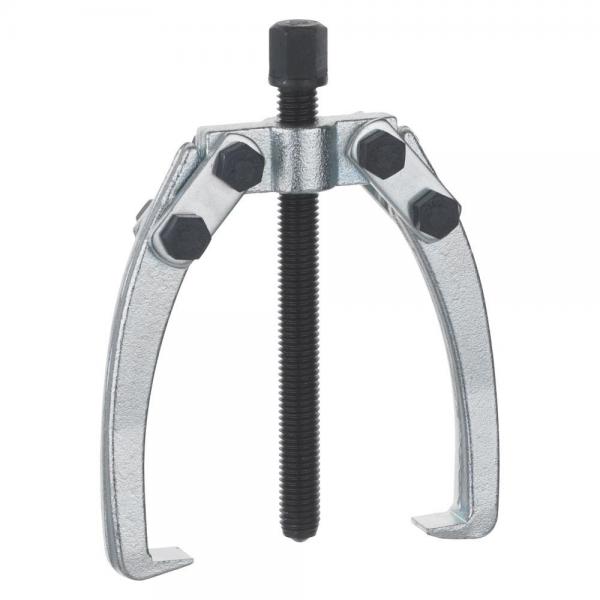

Nexus 141-2 Mini Puller 2-arm
US$34.44 *
Prices plus shipping costs
Ready to go! In your hands soon. (see shipping costs for details)
- Order number: NX010011
- GTIN-13 (EAN) 4046111005349
- Suppliernumber: 141-2
- Weight: 0.2 Kg
- Customs tariff number: 82055980
- Country of origin (COO):
Germany
✓ Mini-Puller, 2-arms ✓ Ideal to remove small parts ✓ Self-locking strap... more
✓ Mini-Puller, 2-arms
✓ Ideal to remove small parts
✓ Self-locking strap construction automatically presses the pulling legs under the part to be removed
| Clamping width external pulling (mm) |  | 10-70 |
| Clamping width internal pulling (mm) |  | - |
| Clamping depth (mm) |  | 44/74 adjustable |
| Max. torque (Nm) |  | 20 |
| Spindle dimensions (mm) |  | M8X85 |
| Max. load (t) |  | 1,2 |
| Wrench size (mm) |  | 10 |
| Internal width of pulling hook (mm) |  | 5 |
| External width of pulling hook (mm) |  | 12 |
| Thickness of pulling hook (mm) |  | 1 |
| Length of pulling hook (mm) |  | 8 |
